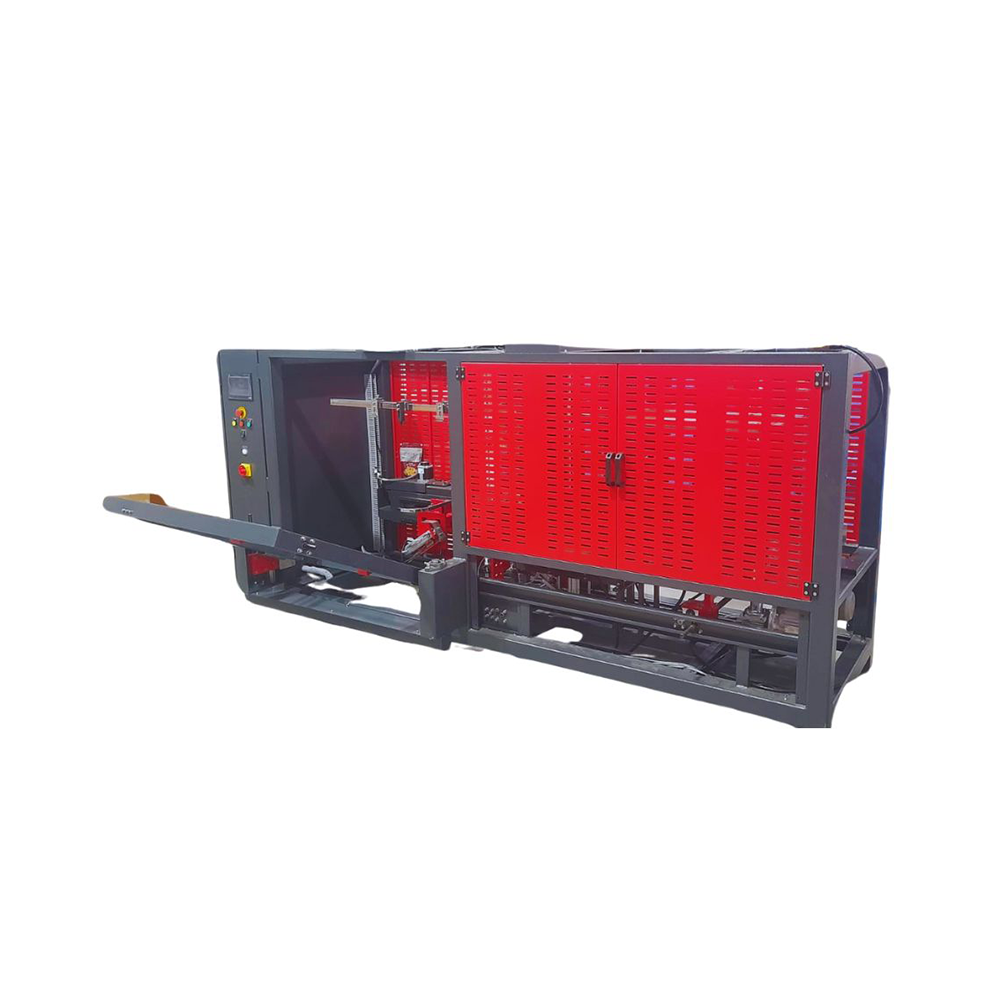

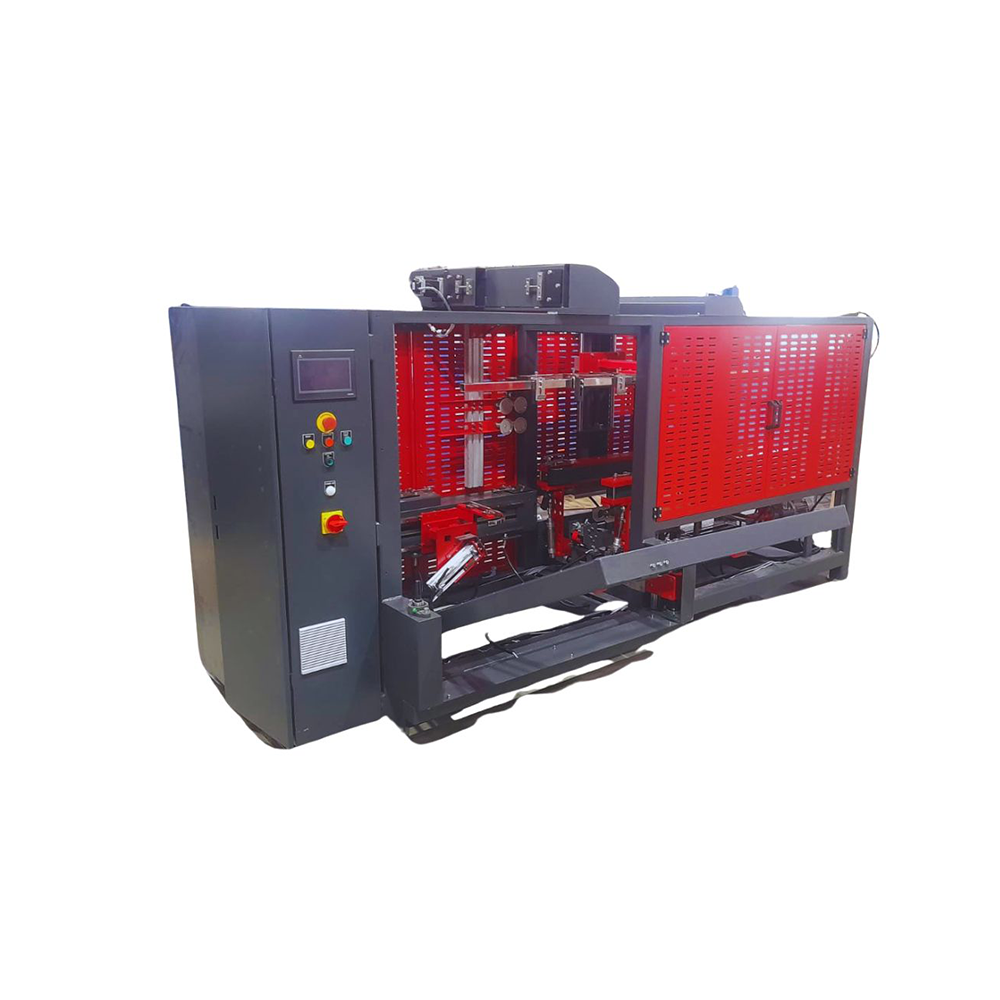

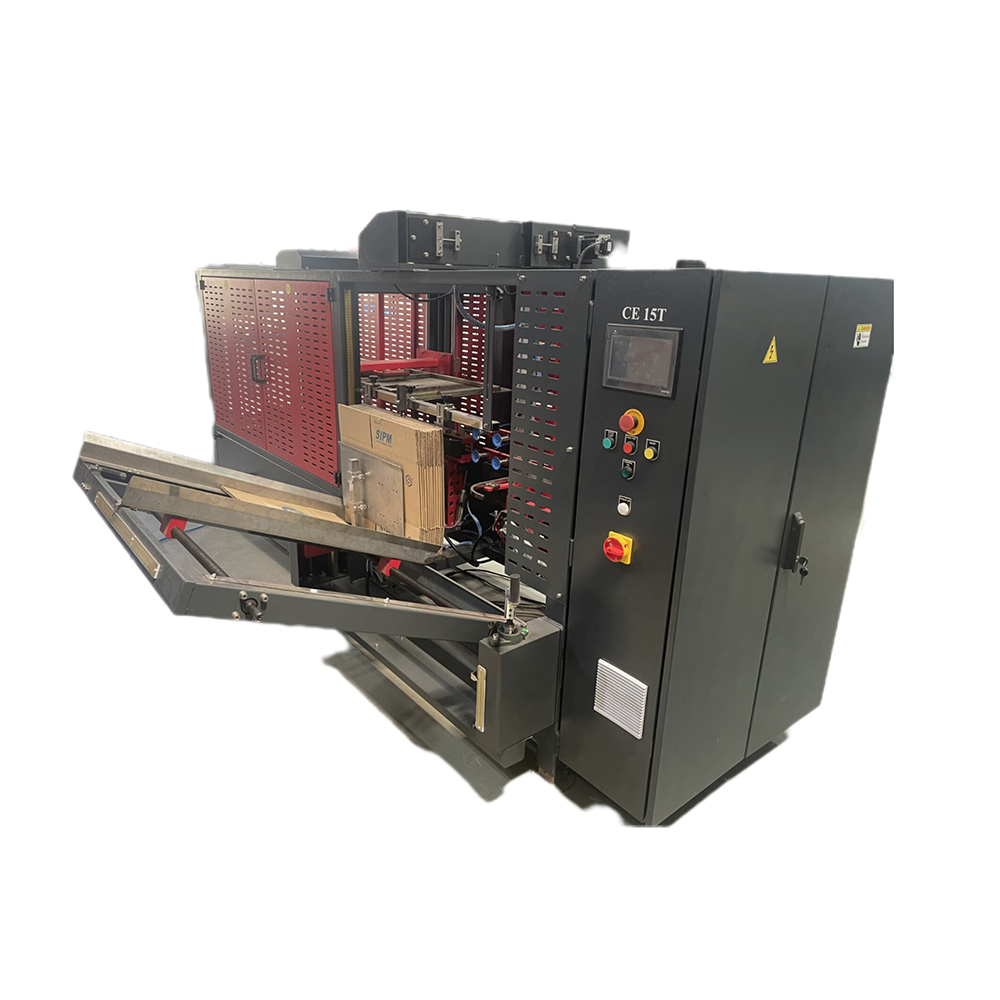

Case Former
Spheretech Packaging is a Case Packer Machine Manufacturer offering automated case packing solutions for efficiently placing filled bottles and rigid containers into cartons. Our case packing systems are designed for organized product handling, automated pick-and-place operations and integration with packaging lines.
The machine can be configured with product infeed conveyors, accumulation and lane-dividing systems, carton infeed and customized pickup or gripper heads according to the product and case-packing requirements. This makes the Case Packer Machine suitable for manufacturers looking to automate secondary packaging and reduce manual handling in their production process.
Spheretech’s case packing solutions can be integrated with upstream filling, capping and labelling operations as part of a complete packaging automation line.
Guarantee Safe & Secure Checkout
Applications
Specificatons
Specificatons
| Case Length (mm) | 200 – 500 (Outside Dimensions) |
| Case Width (mm) | 180 – 400 (Outside Dimensions) |
| Case Height (mm) | 180 – 500 (Outside Dimensions) |
| Case Type | RSC |
| Flute Types | B, C, E or Combinations |
| Wall Types | Single & Double Wall |
| Taping Head | SIAT 3″ Inches Tape Width |
| Mechanical Speed | 15 cases per minute |
| Magazine Infeed | 100 cases (Approximately) |
| Electrical Connection | 415V, 3 Phase, 50 Hz |
| Power Required | 3 KVA |
| Compressed Air (Dry Air) | 20 CFM @ 6 bar (Customer Scope) |
| Machine Dimension | 3070 mm (L) × 1930 mm (W) × 1560 mm (H) |
Features & Benefits
Features & Benefits
Automated Case Packing
Automates the process of transferring products into cases, reducing dependency on repetitive manual packing operations.
Pick-and-Place Operation
A dedicated pickup and gripper arrangement handles grouped products and places them into the prepared carton.
Customized Gripper Heads
The product gripper can be configured according to the product type, container format and packing arrangement.
Organized Product Handling
Infeed, accumulation and product arrangement systems help maintain an organized flow before the case-packing operation.
PLC-Controlled Operation
PLC-based control supports coordinated operation of the machine and its connected packaging modules.
Servo-Driven System
Servo-driven movement can provide controlled product handling and coordinated pick-and-place operation.
Packaging Line Integration
The Case Packer can be integrated with upstream and downstream packaging equipment to create a coordinated end-of-line solution.
Reduced Manual Handling
Automation helps reduce repetitive manual case loading and supports a more consistent packaging workflow.
