A Pneumatic Piston Filling Machine uses a piston and cylinder mechanism powered by compressed air to dispense controlled quantities of liquid. The piston moves through a defined stroke, allowing the filling volume to be adjusted according to the required application.
This type of filling system can provide a practical solution for manufacturers looking for controlled liquid dispensing across different production environments.

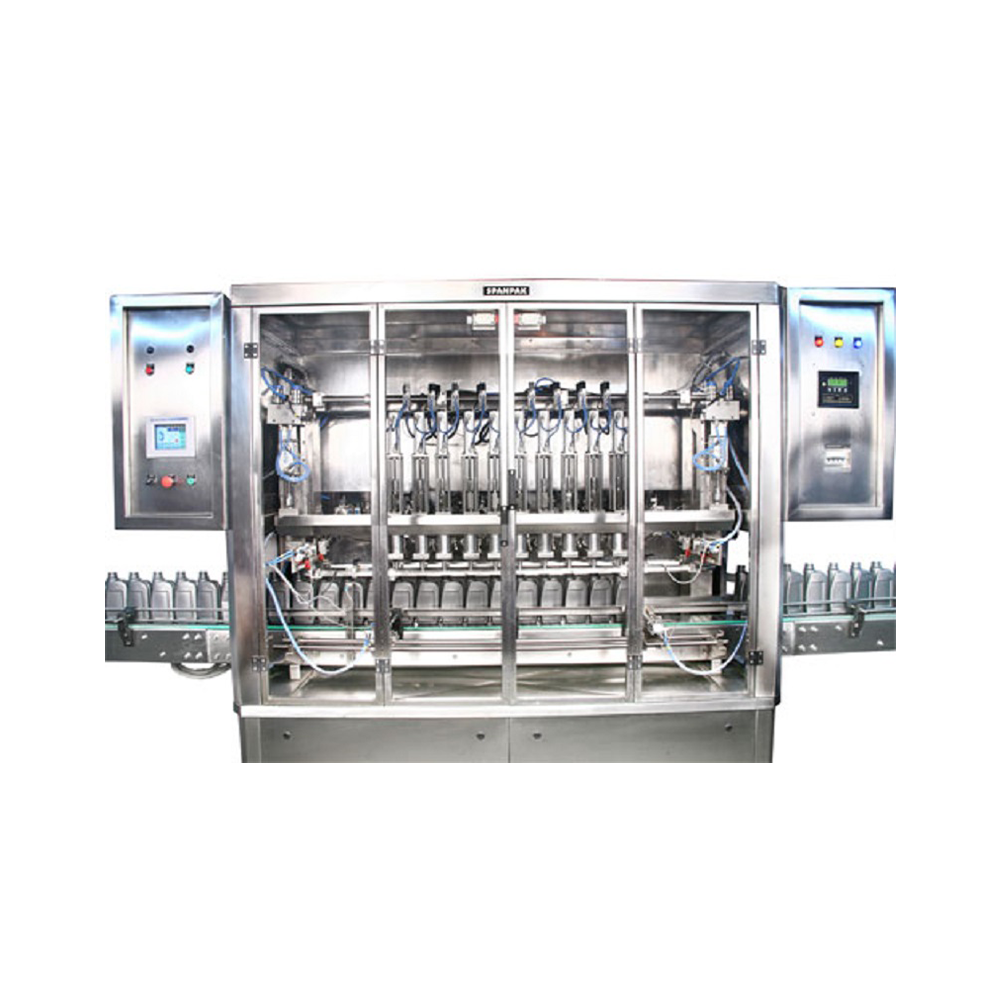

Spheretech's Digital Pneumatic Piston Filler combines pneumatic piston operation with digital control and a compact, robust machine design for suitable liquid packaging applications.
Read More
What Is a Pneumatic Piston Filler?
A Pneumatic Piston Filler is a liquid filling machine that uses pneumatic power to move a piston inside a cylinder.
The piston draws liquid into the filling chamber and then moves to dispense the measured quantity into the container. The piston stroke determines the chamber displacement and therefore the quantity of liquid that can be dispensed during the filling cycle.
This makes pneumatic piston filling suitable for applications where controlled liquid volume and repeatable dispensing are required.
How Does a Pneumatic Piston Filling Machine Work?
The filling process is based on controlled piston movement.
The general process involves:
- Liquid product is supplied to the filling system.
- The pneumatic cylinder drives the piston.
- The piston draws liquid into the chamber.
- The piston moves through the configured stroke.
- The measured liquid is dispensed into the container.
- The filling cycle repeats for the next container.
The filling volume can be adjusted by changing the piston stroke. A longer stroke increases the chamber volume, while a shorter stroke reduces it.
Digital Pneumatic Piston Filler for Adjustable Filling
One of the important characteristics of the Digital Pneumatic Piston Filler is its controlled stroke-based filling mechanism.
The piston stroke determines the chamber displacement. This allows the filling process to be adjusted according to the required product quantity and application.
Digital operation further provides a controlled interface for operating the filling system, making the machine suitable for automated liquid packaging environments.
Pneumatic Piston Filling for Food and Beverage
Food and beverage packaging operations often require consistent liquid dispensing into bottles and other containers.
A Pneumatic Piston Filling Machine can be used for compatible liquid products where controlled filling volume is required. The piston mechanism provides a defined displacement-based approach to liquid filling.
The appropriate configuration depends on the product characteristics, container format and production requirements.
Pneumatic Piston Filling Machine for Cosmetics
Cosmetic products can include different types of liquid formulations that require controlled dispensing during packaging.
The Pneumatic Piston Filler provides piston-based product dispensing for compatible cosmetic liquids, with the filling volume controlled through piston stroke adjustment.
This makes it suitable for production applications where repeatable liquid filling is required.
Pneumatic Piston Filler for Pharmaceutical Applications
Pharmaceutical liquid packaging requires controlled product handling and consistent filling processes.
A pneumatic piston mechanism provides controlled movement of the filling piston and corresponding product dispensing. Spheretech's machine is listed for pharmaceutical applications where the product and required machine configuration are compatible.
The final machine configuration should be determined according to the specific pharmaceutical product and production requirements.
Pneumatic Piston Filling for Chemical Products
Chemical liquids can vary considerably in their physical properties and handling requirements.
A Pneumatic Piston Filling Machine can be considered for compatible chemical products where piston-based liquid dispensing is appropriate.
Before selecting the machine, manufacturers should evaluate product compatibility, filling requirements, container format and the required production process.
Automatic Piston Filling Machine for Packaging Lines
An Automatic Piston Filling Machine can reduce manual intervention in repetitive liquid filling operations and provide a more controlled production workflow.
The filling system can be incorporated into a broader packaging line depending on the required automation level.
A typical packaging sequence:
Container Handling → Filling → Capping → Sealing → Labelling → Coding → Case Packing
The exact configuration depends on the product, container and production requirements.
Pneumatic Piston Filling Machine vs. Mechanical Piston Filler
Both machines use a piston-based filling principle, but the piston drive mechanism differs.
A Mechanical Piston Filler uses a mechanical arrangement to operate the piston, while a Pneumatic Piston Filler uses a pneumatic cylinder to drive the piston.
The choice between the two depends on factors such as:
- Required automation
- Production requirements
- Filling volume
- Product characteristics
- Machine configuration
- Available production environment
For a related mechanical solution, users can explore Spheretech's Mechanical Piston Filling Machine.

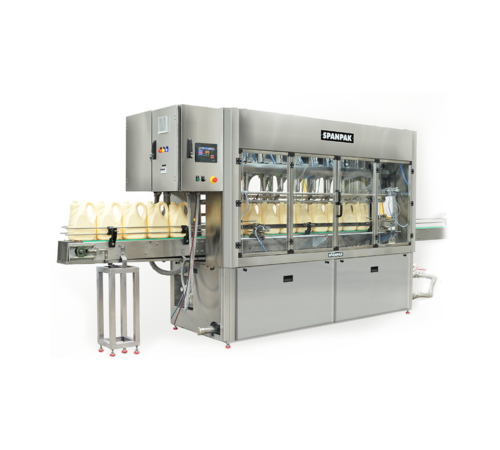

Pneumatic Piston Filling Machine vs. Volumetric Filling Machine
Pneumatic piston filling is itself a volume-controlled filling approach, where piston displacement determines the chamber volume used during filling.
Other volumetric filling systems can use different mechanisms for measuring and dispensing a defined quantity of liquid.
The appropriate technology depends on:
- Product characteristics
- Required fill volume
- Container type
- Production requirements
- Automation requirements
- Filling process configuration
How to Choose a Pneumatic Piston Filler
Before selecting a Pneumatic Piston Filler, manufacturers should consider:
- Type of liquid product
- Product flow characteristics
- Required filling volume
- Container size and format
- Production requirements
- Desired automation level
- Filling adjustment requirements
- Available production space
- Packaging line integration
The machine should be selected according to the actual product and production conditions rather than simply based on generic machine specifications.
Digital Pneumatic Piston Filler for Industrial Production
The Digital Pneumatic Piston Filler is designed for controlled liquid filling applications across multiple industrial sectors.
Its combination of the following characteristics makes it a practical option for suitable liquid packaging processes:
- Pneumatic piston operation
- Adjustable stroke
- Controlled liquid dispensing
- Digital operation
- Compact design
- Robust construction
Pneumatic Piston Filling Machine for Multiple Industries
Spheretech's Pneumatic Piston Filler is shown for applications across:
- Food and Beverage
- Cosmetics
- Pharmaceuticals
- Chemicals
Each industry can involve different product characteristics and packaging requirements. Machine configuration should therefore be evaluated according to the specific liquid, container and production process.
Why Choose Spheretech's Pneumatic Piston Filler?
Spheretech's Digital Pneumatic Piston Filler is designed around a controlled pneumatic piston filling mechanism for liquid packaging applications.
Key characteristics include:
- Pneumatic cylinder-driven piston
- Adjustable piston stroke
- Controlled filling volume
- Digital operation
- Compact design
- Robust construction
- Suitability for multiple liquid industries
- Design for packaging line integration
The appropriate machine configuration can be determined according to the product, container and production requirements.
