What Is a Level Filling Machine?
A Level Filling Machine is liquid filling equipment designed to fill compatible containers to a consistent visible level.
The objective is to achieve uniformity in the appearance of the filled bottles, which can be particularly important for transparent or translucent packaging.
Level filling is therefore useful when the visual fill level is an important part of the finished product presentation.
The actual filling principle and machine configuration depend on the liquid, bottle design, production requirements and selected equipment.
How Does a Rotary Level Filler Machine Work?

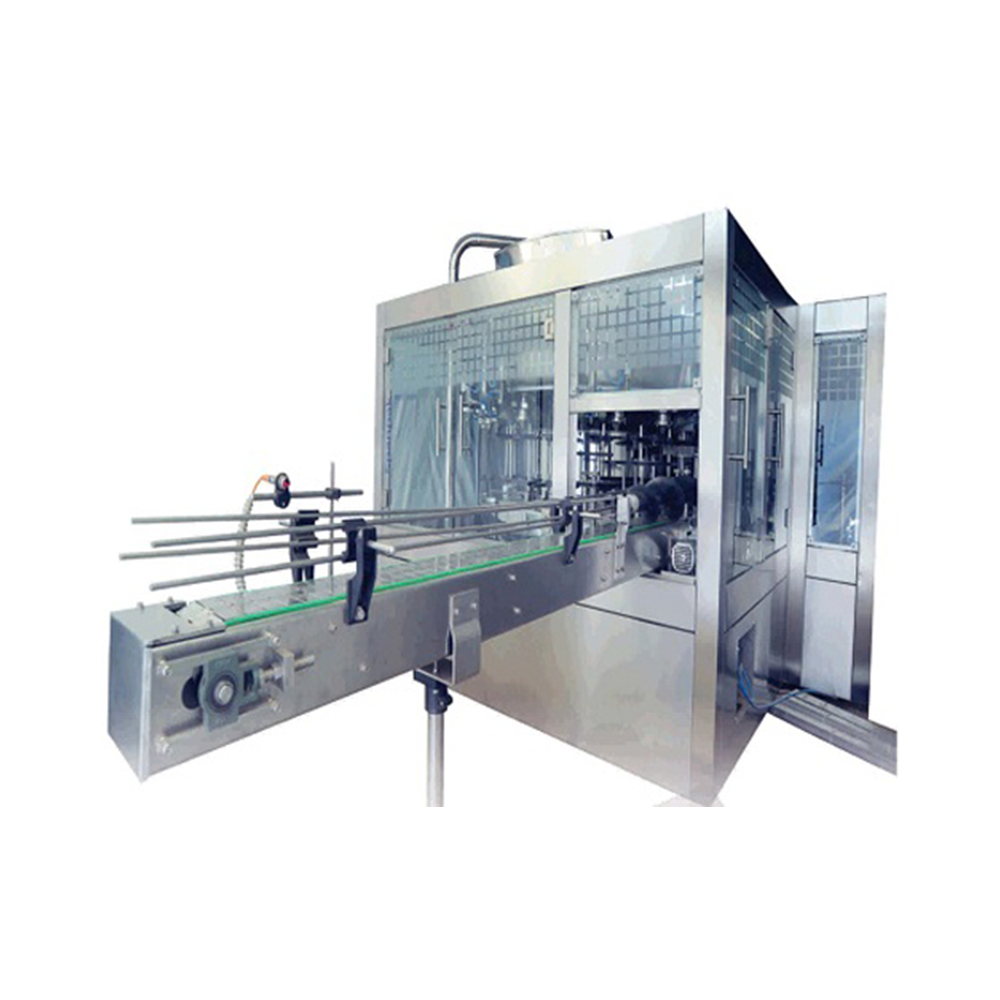

The Rotary Monoblock Level Filler Machine combines several bottle-handling operations into one coordinated system.
A simplified process:
Bottle Infeed → Bottle Rinsing → Level Filling → Capping → Bottle Discharge
During operation, bottles are transferred through the rotary machine and pass through the relevant processing stations.
The filling stage uses the machine's level-filling principle to establish a consistent fill level across compatible containers. Once filling is completed, the bottles proceed to the capping stage.
The PLC control system coordinates the machine's automated functions.
Rotary Monoblock Level Filler Machine for Water
Water Filling
Bottled water applications require consistent filling and efficient handling of bottles throughout the packaging process.
Spheretech's Rotary Monoblock Level Filler Machine integrates rinsing, filling and capping for compatible water packaging applications.
The level-filling principle is particularly relevant where manufacturers want a consistent visible fill level across bottles.
Rotary Monoblock Level Filler Machine for Juices
Juice Filling
Juice packaging can involve different bottle formats and production requirements. For compatible juice products, a rotary level filling system provides a coordinated approach to bottle rinsing, filling and capping.
The machine's configuration should be selected according to the juice characteristics, bottle format, production requirement and required filling process.
Level Filling for Wine
Wine Filling Applications
Wine bottles can vary in shape and packaging format. For compatible applications, level filling can help maintain a consistent visible fill level across suitable bottles.
The suitability of this machine for a particular wine product should be evaluated based on the product characteristics, bottle design, neck format and required production process.
Why Use a Level Filling Machine?
Benefits of Level Filling
Level filling can be considered when manufacturers place importance on consistent visual fill levels across compatible containers.
Key benefits can include:
- Consistent visible fill level
- Coordinated bottle filling
- Automated bottle handling
- Integration of rinsing, filling and capping
- Suitability for compatible beverage packaging
- Reduced handling between individual process stages
- Support for automated production environments
The actual result depends on the machine configuration, product properties, bottle design and operating conditions.
Rotary Level Filling vs. Other Filling Methods
Different filling technologies are designed for different packaging requirements.
| Filling Technology |
Main Principle |
Suitable Consideration |
| Level Filling |
Consistent visible fill level |
Useful where uniform bottle appearance is important |
| Volumetric Filling |
Controlled liquid volume |
Suitable where a defined volume is required |
| Weighmetric Filling |
Controlled product weight |
Suitable where filling by weight is required |
| Mass Flow Filling |
Direct mass-flow measurement |
Suitable where mass-based measurement is required |
| Piston Filling |
Controlled piston displacement |
Suitable for compatible liquid characteristics |
The choice should depend on the liquid, container, filling requirement, production capacity and overall packaging process.
What Is a Rotary Monoblock Filler?
Rotary Monoblock Filling System
A rotary monoblock filling machine combines multiple bottle-processing operations into a single coordinated machine.
In Spheretech's configuration, the machine combines:
Rinsing → Filling → Capping
This approach allows bottles to move through the different stages without requiring separate standalone machines for each operation.
For suitable beverage applications, a monoblock configuration can simplify the flow of bottles through the primary packaging process.
Why Choose a Rotary Monoblock Level Filler?
A rotary monoblock system can be considered by manufacturers looking to coordinate multiple bottle-processing stages within a single machine configuration.
Integrated Processing
Rinsing, filling and capping are combined into one coordinated machine.
Consistent Fill Level
Level filling is designed around achieving a consistent visible fill level across compatible bottles.
Automated Control
PLC-based control supports coordinated operation of the machine.
Bottle Compatibility
Bottle shape, neck format and dimensions should be evaluated before selecting the machine.
Product Compatibility
The filling system should be selected according to the characteristics of the beverage being packaged.
Production Requirements
Production capacity and required automation should be considered when configuring the machine.
How to Select a Rotary Level Filler Machine
Choosing a Rotary Level Filler Machine should be based on the complete packaging requirement rather than only the machine name.
Product Type
Identify whether the machine will be used for water, juice, wine or another compatible liquid.
Bottle Format
Evaluate bottle shape, height, diameter and neck configuration.
Filling Requirement
Determine whether maintaining a consistent visible fill level is the main filling objective.
Production Capacity
Define the required production output and operating schedule.
Rinsing Requirements
Determine the bottle-rinsing process required before filling.
Capping Requirements
Select the appropriate closure and capping arrangement for the bottle.
Automation Level
Determine the level of automation required for the complete packaging process.
Automatic Level Filler Machine for Beverage Production
Automatic Level Filling Solutions
An Automatic Level Filler Machine can support beverage production environments where bottle filling needs to be coordinated with other packaging operations.
Spheretech's Rotary Monoblock Level Filler combines rinsing, filling and capping, allowing these stages to operate as part of an integrated process.
The machine's PLC-based control system supports automated operation, while the rotary configuration provides coordinated bottle movement through the different processing stages.
The final machine configuration should be selected according to product, bottle, production capacity and packaging-line requirements.
From Filling to Complete Beverage Packaging
Integrating Level Filling with Packaging Automation
Filling is only one stage of a complete beverage packaging process.
A broader packaging line can include:
Bottle Handling → Rinsing → Filling → Capping → Sealing → Labelling → Coding → Secondary Packaging
Spheretech's wider packaging machinery portfolio includes solutions for:
- Filling
- Capping
- Sealing
- Labelling
- Coding and marking
- End-of-line packaging
Related Packaging Solutions
Why Choose Spheretech for Level Filling Machines?
Spheretech Packaging develops liquid packaging machinery for industrial applications and provides filling solutions based on product, container and production requirements. Its Rotary Monoblock Level Filler combines bottle rinsing, level filling and capping in an integrated configuration for compatible beverage applications.
Integrated Monoblock Design
Rinsing, filling and capping are combined within one coordinated machine.
Level Filling Technology
Designed to support consistent visible fill levels across compatible bottles.
PLC-Based Control
Automated control supports coordinated machine operation.
Beverage Applications
Designed for compatible applications including water and juices, with suitability for other products evaluated according to machine configuration.
Bottle Format Flexibility
Designed to accommodate compatible bottle shapes with a common neck format.
Packaging Line Integration
Can form part of a broader beverage packaging line with compatible downstream equipment.
