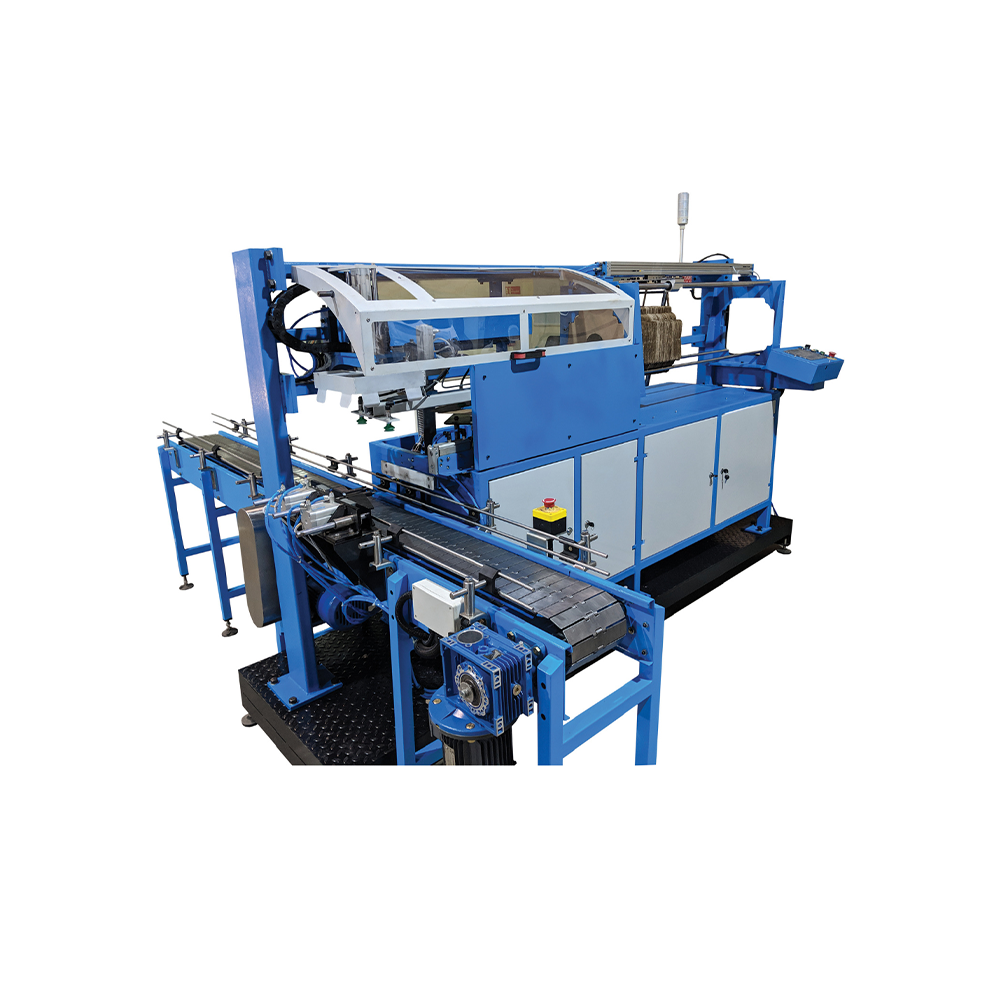

What Is a Tin Collar Placer Machine?
A Tin Collar Placer Machine is packaging equipment designed to automatically place a collar onto a tin.
The collar is first supplied through the feeding system, positioned in the required orientation and transferred to the gluing and placement stages. The collar is then placed onto the tin and pressed before the packaged tin moves forward.
Spheretech's published machine design follows this sequence through dedicated feeder, tilter, pick-and-place, gluing, pressing and conveyor sections.
How Does a Tin Collar Placer Work?
The operation can be divided into several stages.
1. Collar Feeding
Collars are supplied to the machine through the collar feeder/de-stacker.
2. Collar Orientation
The collar tilter changes the collar from its initial vertical position to the required horizontal orientation.
3. Pick-and-Place
The positioned collar is transferred by the pick-and-place mechanism toward the gluing station.
4. Glue Application
Adhesive is applied to the collar at the dedicated gluing station.
5. Collar Placement
The glued collar is transferred and positioned onto the tin top.
6. Pressing
The pressing station supports the final placement of the collar.
7. Conveyor Transfer
The tin continues through the machine using the conveyor system.
This sequence is based on Spheretech's published machine architecture.
Tin Collar Placer for Edible Oil Packaging
Edible oil is one of the applications specifically associated with Spheretech's automatic tin collar placer. The company describes the system as a solution for automating collar placement on tins used in oil packaging.
For edible oil manufacturers using tin containers, the machine can form part of a broader packaging workflow alongside:
- Oil filling
- Tin handling
- Collar placement
- Labelling or coding
- Case packing
- Other end-of-line operations
Tin Collar Placer for Lubricant Oil Packaging
The Tin Collar Placer can also be used in lubricant oil packaging applications involving compatible tin containers.
Automating the collar-placement stage can help connect this operation with other packaging processes and reduce repetitive manual handling.
Spheretech identifies both edible oil and lubricant oil packaging within its oil-packaging solutions.
Key Components of the Tin Collar Placer
The machine consists of several coordinated sections.
Collar Feeder / De-Stacker
Feeds individual collars into the machine.
Collar Tilter
Changes the collar orientation before placement.
Pick-and-Place Unit
Moves the collar between the relevant machine stations.
Gluing Station
Applies adhesive to the collar before placement.
Pressing Station
Supports secure placement of the collar on the tin.
Dual Conveyor System
Provides controlled movement through the machine.
These components are identified in Spheretech's published machine description.
Why Automate Tin Collar Placement?
Manual collar placement can involve repetitive handling and operator intervention. Automating the process allows feeding, orientation, adhesive application, placement and pressing to be coordinated within one system.
Potential operational advantages include:
- Reduced repetitive manual handling
- Consistent collar positioning
- Coordinated adhesive application
- Organized tin movement
- Integration with packaging operations
- More structured end-of-line workflow
The actual operational benefits depend on the production environment, tin format and complete line configuration.
Tin Collar Placer Integration with Packaging Lines
The Tin Collar Placer can be considered as part of a broader packaging automation setup.
A typical oil packaging workflow may include:
TIN FEEDING → FILLING → CLOSURE → COLLAR PLACEMENT → LABELLING / CODING → CASE PACKING → FINISHED PRODUCT HANDLING
The exact sequence depends on the packaging format and production requirements.
For manufacturers seeking broader automation, the machine can be connected with other Spheretech packaging equipment and end-of-line solutions.
How to Select a Tin Collar Placer Machine
Before selecting a machine, manufacturers should evaluate the following factors.
Tin Dimensions
The tin dimensions should be compatible with the machine's handling and placement system.
Collar Format
The collar dimensions, construction and required orientation should be evaluated.
Production Requirement
Required production output should be matched with the appropriate machine configuration.
Adhesive Requirement
The adhesive type and application process should be considered during machine configuration.
Packaging Line
The machine should be evaluated in relation to upstream and downstream packaging equipment.
Automation Requirement
Determine the required level of automation and operator involvement.
Safety Requirements
Machine guarding and access requirements should be considered during installation and operation.
Why Choose Spheretech for Tin Collar Placement?
Spheretech provides packaging machinery across filling, capping, sealing, labelling and end-of-line applications.
Its Tin Collar Placer is designed specifically around automated collar handling and placement, with dedicated feeding, orientation, pick-and-place, gluing and pressing stages.
For oil-packaging applications, Spheretech also positions the machine within its broader edible oil and lubricant oil packaging solutions.
