Automatic Weighmetric Filler Machine

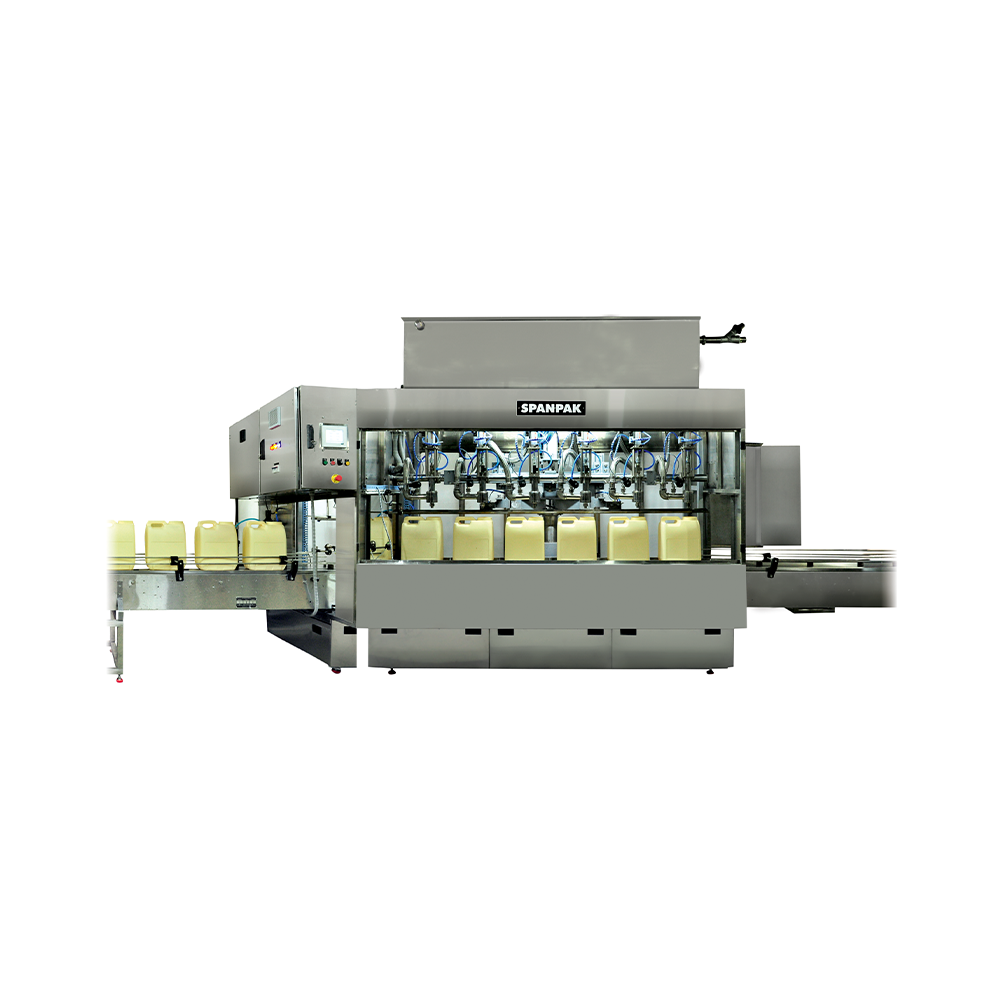

Spheretech's Weigh Metric Filling Machine offers precise weight-based filling for containers, accommodating a wide range from as low as 5 kg to over 30 kg. Leveraging load cell technology, it achieves exceptional filling accuracy of approximately +/- 0.1%. Available in multiple variants based on the number of heads, this advanced filling machine features a PLC (Programmable Logic Controller) and a wide-screen HMI (Human Machine Interface) for ease of operation. Standard features include "Auto Tare" and "No Container No Fill," ensuring efficiency and reliability in every use.

Linear Weigh Filler	4x	6x	8x
Machine Speed	Bottles/ Containers per hour
15 Kg	360	480	600
Conveyor Length (mm)	6000	8700	11300
Power (KW)	3-4	3-4	4-5
Air Pressure (Kg/sq cm)	5	5	5

Filling rang: 5 to 30 kg
Accuracy of filling: approximately +/-0.1%.
Weight setting: On Wide HMI touch screen graphic Display
No Container fill : Auto tare facilitates “No container no fill”
Versatile: Minimum adjustment required for setting different capacities.
Nozzle type: Positive cut-off
Filling modes: Options available of filling in Net Gross modes
Drip arresting tray below nozzle for accidental drip
Models: Available in 4,6,8,10 & 12 head configuration
Temperature control available
Data logging : Available as an option
